Product Overview

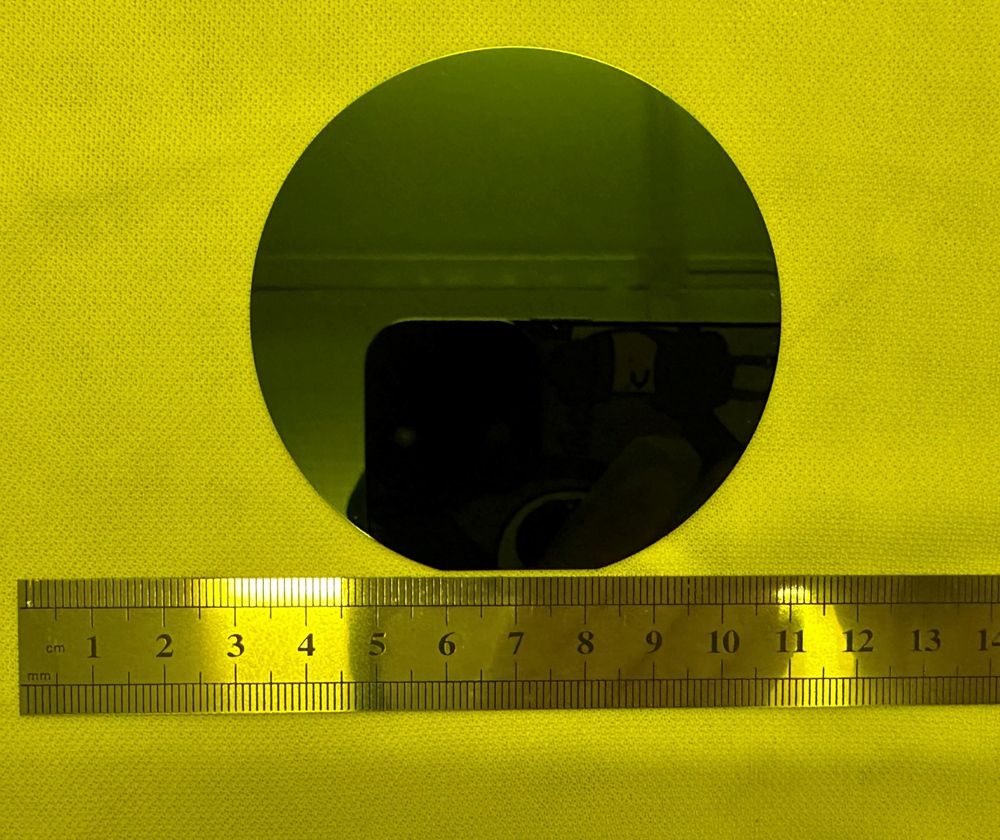

Our company provides high-purity semiconducting single-walled carbon nanotube (s-SWCNT) film wafers that offer excellent electrical properties, uniformity, and flexibility. These wafers are ideal for the research, development, and application of devices such as thin-film transistors, gas sensors, photodetectors, and carbon-based integrated circuits.
Applications
With their high purity and excellent uniformity, semiconducting single-walled carbon nanotube (s-SWCNT) film wafers are an ideal material for cutting-edge research at academic institutions. They can be used directly for the experimental development of devices like thin-film transistors, photodetectors, flexible and transparent electronic devices, sensors, and carbon-based integrated circuits. This provides researchers with a reliable platform for validating novel device performance, studying material physical mechanisms, and exploring application prototypes. Thanks to their superior processability and experimental compatibility, these wafers help researchers efficiently conduct fundamental research and applied innovation, driving the development of next-generation carbon-based electronics and optoelectronics.
Product Parameters
S-SWCNT purity: ≥99.9%

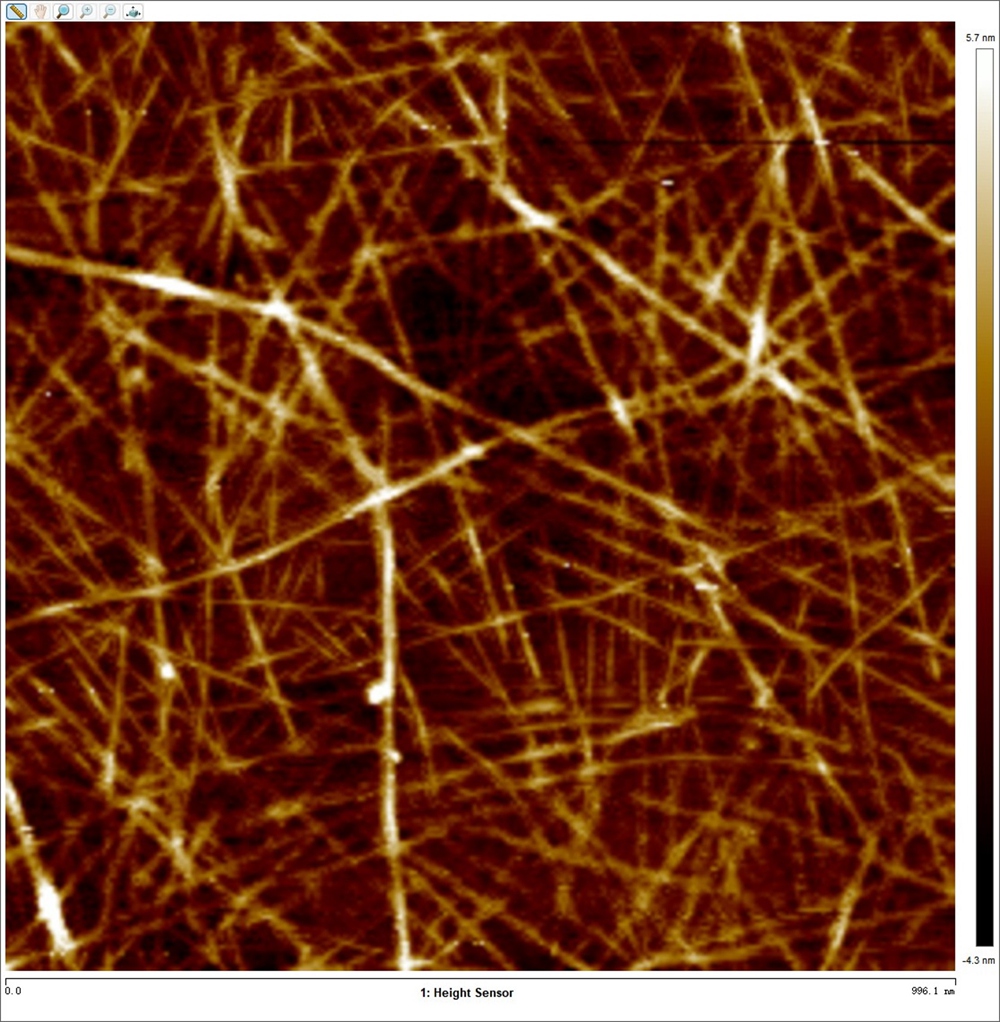

The density of the CNTs：~20 CNTs/μm
Substrate diameter: Available in 4-8 inches
Substrate: Si, SiO2, ITO, SiN, Quartz etc
Price: Please inquire for ordering
Storage conditions: Store in a clean and dry environment at room temperature.
